IF-CA112X Series
Price Ask
Technical Information
- Red/Blue indicate light
- Mater card, passage cards, emergency card can arrive in all floors
- RED cable: 12VDC
- BLACK cable: GND
- GREEN cable: DATA0
- WHITE cable: DATA1
Description
Product Advantage
- ABS fire retardant material is used
- The effective waterproof grade is IP68
- Wall mounted, convenient and fast
- Rugged and durable, it can be used in various industrial environments Metal resistant design,
- Can be used directly on metal (Note: to be informed before ordering)
This type of elevator access control reader is designed for the Indoor/outdoor hard environment application, preclude the use of advanced RF receiver circuit design and embedded micro-controller, combined with efficient decoding algorithms.
It has received high sensitivity, current, single DC power supply, high-performance characteristics. Dust, moisture, fully sealed design allows users to install the outdoor and other harsh conditions, no mechanical wear and durability.
Additional information
| Weight | 0,210 kg |
|---|---|

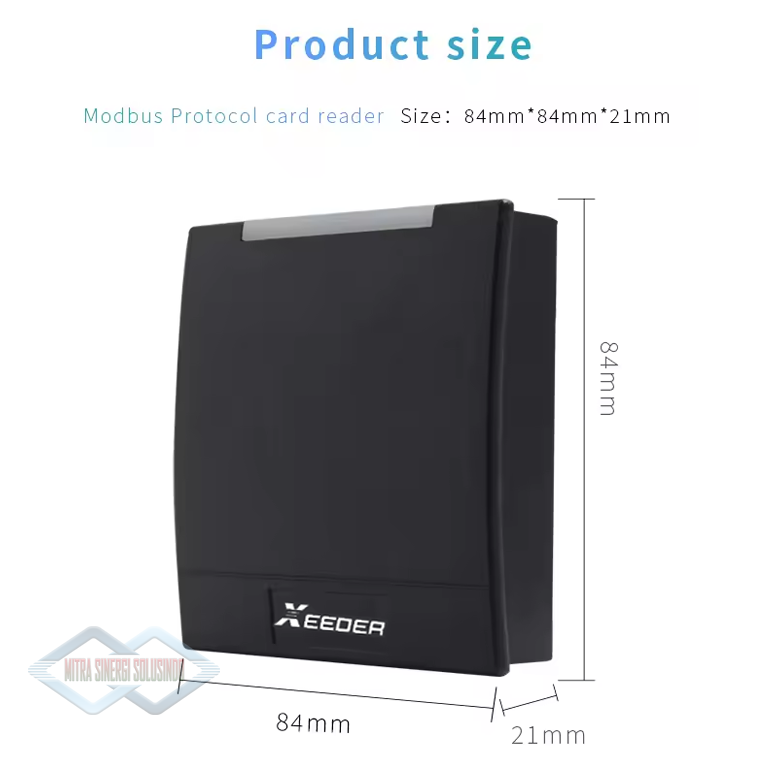

| Dimensions | 8,4 × 8,4 × 2,0 cm |
| Working Voltage | 9~15V DC |
| Working Current | < 100mA |
| Communication Mode | Wiegand26 (with elevator controller) |
| Reading Distance | =< 5 Cm |
| Communication Distance | <20M |
| Card Type | ISO14443 TYPE A(Mifare-1, S50, S70, FM1208CPU) |
| Frequency | 13.56 M Hz |
| Material | ABS fire retardant |
| Type | IF-CA112, IF-CA112A, IF-CA112B |
| Waterproof | IP68 |
